Anti Climb 358 Security Fence China Supplier

Table Of Contents

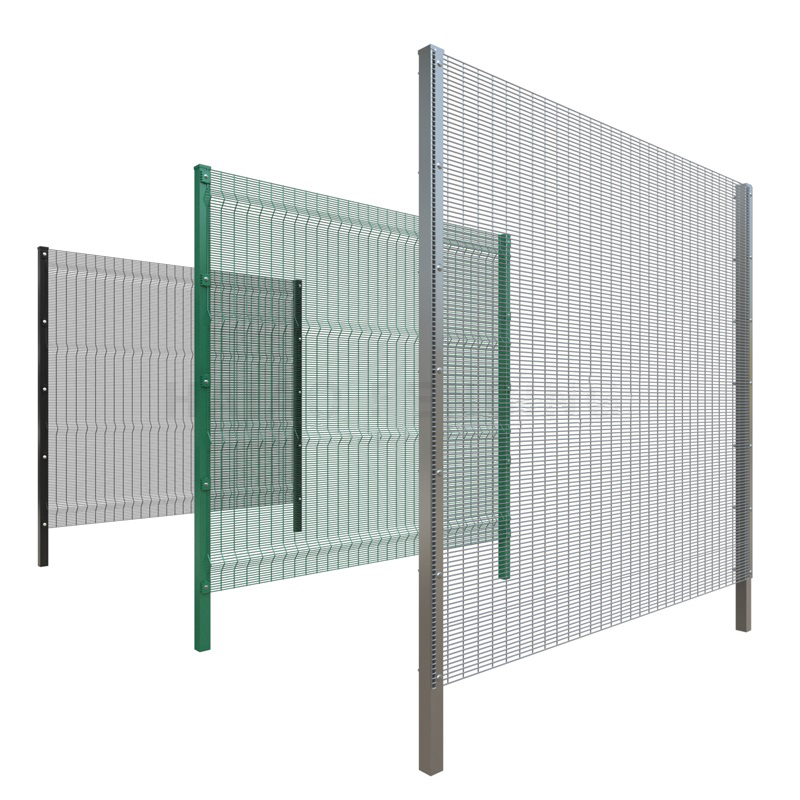

1. What is the 358 security fence

358 security fence is also called 358 security fence, 358 mesh, 358 mesh fencing, 358 fence, prison mesh fencing, 358 security mesh, prison mesh, 358 anti climb mesh, 358 fencing, corromesh, 358 prison mesh, 358 mesh fencing prices, 358 security mesh price, 358 security fencing 358 welded mesh, 358 mesh fence, 358 anti climb fence, prison mesh 358, 358 mesh panels, corromesh fencing, corromesh, landscaped fence, garden fences, decorative fences, security fences, barbed wire fences, 358 mesh panel, etc.

358 high security fence is named for its dense mesh. “358” comes from its measurements 3″ x 0.5″ x 8 Gauge, which equates to 76.2mm x 12.7mm x 4mm (Mesh Size Length x Mesh Size Height x Wire Diameter) in metric.

The 4.0mm welded steel wires are welded together according to certain Numerical control machine tool operations. Then through some necessary production procedures, such as polishing play sand to improve the adhesion for powder-coated, hot-dipped galvanized, and powder coated spraying to provide anti- rush last longer. Finally installed with flange post using non-removable shear nuts to stop intruders.

358 Security Fence Production Line

2. 358 security fence specification

358 security fence is the top choice when considering the protection from School, prison, boundary. The dense mesh has high security and good anti-climbing ability. The mesh connection method adopts special SBS fasteners or installs anti-theft screw extrusion links, etc., which can effectively prevent Man-made destructive disassembly, four horizontal bending stiffeners, which significantly increase the strength of the mesh surface, are widely used as fences, decorations, laboratories, secure hospitals, schools, parks, leisure and recreational areas, and protection facilities in industries such as industry, agriculture, municipal administration, and transportation, especially with razor blades. The rope is used as the isolation and protection net of the military key point of the prison detention center.

Wire thickness3.0mm,4.0mm,5.0mm
Hole size76.2 x 12.7mm
Width2000mm, 2200mm, 2500mm
Height1000mm, 1200mm,1500mm,1800mm, 2000mm, 3000mm
Weld strengthRange 540–690 N/m2
Post height1400mm, 1600mm, 2000mm, 23000mm, 2500mm
Post typesquare fence post 60 x 60 x 2.0/2.5mm, 80 x 80 x 2.5/3.0mm, 100 x 100 x 2.5/3.0mm, 120 x 120 2.5/3.0mm
Post Rain hatPlastic or Metal Material
BaseplateBolt down onto the concrete
Accessoriespost base feet, barbed wire, slotted clamp bars, post cap, bracket, M8 bolts, spacer, nuts, washer, clips.
FinishElectric galvanized before powder coated, Hot dipped galvanized
358 Mesh Fence Quality Control

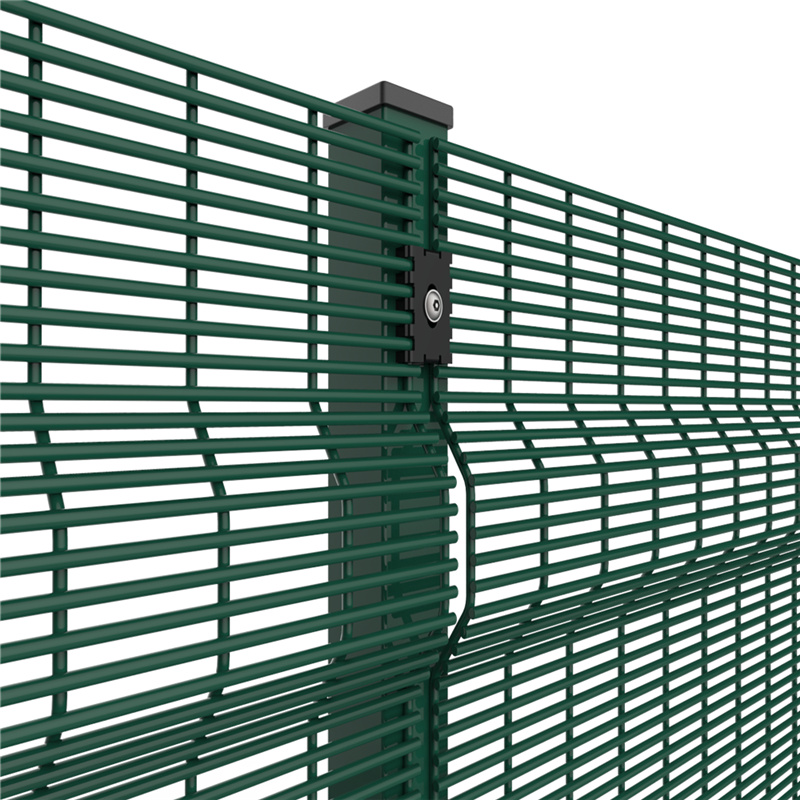

1) Post: It ensures a quick and easy installation around the perimeter

ItemSizeThickFinishHeightRainhat
Square Post60x60mm 80x80mm2.0mm, 2.5mm, 3.0mmPowder-coated or Galvanized2.5m, 2.8m, 3.0m, 3.7mPlastic or Metal
Rectangle Post60x80mm 2.0mm, 2.5mm, 3.0mm Powder-coated or Galvanized2.5m, 2.8m, 3.0m, 3.7mPlastic or Metal
C Post60x80mm 2.0mm, 2.5mm, 3.0mm Powder-coated or Galvanized2.5m, 2.8m, 3.0m, 3.7mPlastic or Metal

2) Popular 358 security fence panel go with post size

Generally, 3.60 m height fence is used in schools, parks, leisure, and recreational areas, 5.20 m height fence is widely used in prison and military establishments.

Fence Panel Post Post Bar No. of Clamp
HH x WL x W x Thick H Inters clampCorners clamp
mmmmmmmmm
2.02007×251560x60x2.5mm2700 2007x60x5.0 7 14
2.42400×251560x60x2.5mm31002400x60x5.0918
3.02400×251580x80x2.5mm38002997x80x6.01122
3.32997×251580x80x2.5mm42003302x80x6.01224
3.63302×2515100x60x3mm45003607x100x7.01326
3.63607×2515100x100x3mm45003607x100x7.01326
4.24204×2515100x100x4mm52004204x100x8.01530
4.54496×2515100x100x5mm55004496x100x8.01632
5.25207×2515120x120x5mm62005207x100x8.01836

A. Powder Coated Gray Color 358 Fence Panel With Post

B. Powder Coated Black Color 358 Mesh With Post

C. Powder Coated Green Color 358 Mesh Fence With Post

3) Surface Finish: Lat least 15-20 years

Surface TreatmentMin.Max.
Electric Gal.20/m260/m2
Hot dipped Gal.200g/m2600g/m2
Powders Sprayed coating100 microns120 microns

Powder Coated Colors:
Every RAL color desired can be delivered, for example, the colors corresponding to your corporate design.

  • Common colors
  • Dark Green RAL6005
  • Pure White RAL9010
  • Stone Grey RAL7030
  • Jet Black RAL9005
  • Anthracite Grey RAL7016
  • Other RAL colors are available

Wire mesh anti-climb fence high-security fence with I type post
Powder Coated Hot Dipped Galvanized Anti Climb Wall Fence Square post with Spikes
South Africa Clearvu Anti Climb Prison Fence Panels
High-Security Airport Jail Fence Anti Climb Fence 358 Security Fence
358 mesh fence panel for buildings Airport Industrial and commercial property
High security 358 anti-climb fence 358 fences for jail
ClearVu Invisible Wall Fence
Hot sale Strong Anti-Corrosion Galvanized No Climb Fence Panels Anti-Impact
Made in China security partition wall wire mesh fence for warehouse

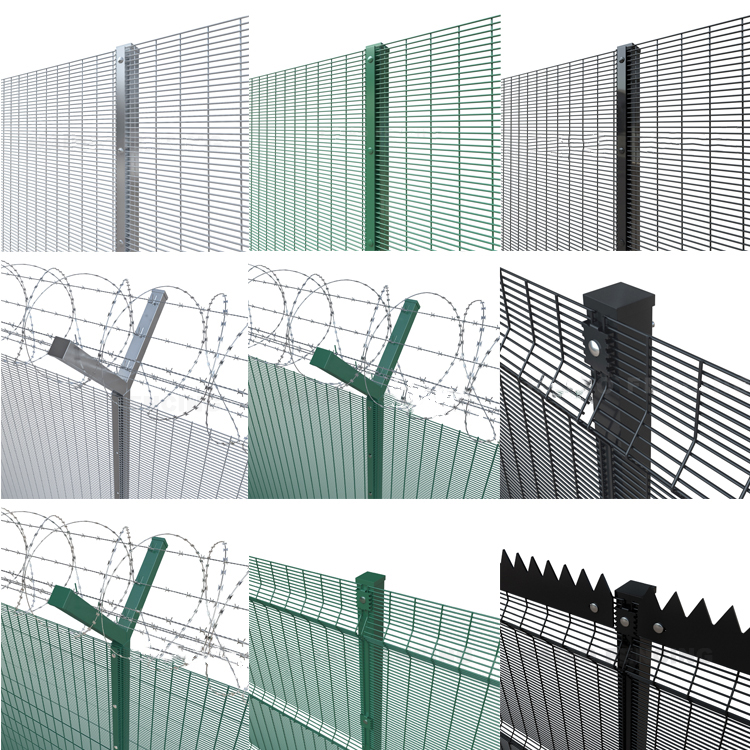

358 Security Fence Installation Types

3. 358 Mesh Security Gates

We manufacture matching single and double leaf gates for this product, with a range of opening actions and manual and automatic operating options.

Pedestrian gates are single leaf 1.2m wide with 50mm x 50 x2.0mm frame tube, suit with slide latch, and 2 x gate posts 100x100x2.0mm.

Vehicle access gates are double leaf (single leaf vehicle gates available) 3.0m wide (or width to suit), with 50mm x 50 x2.0mm frame tube, suit with slide latch, and 2 x gate posts 100x100x2.0mm.

4. Sharp Razor Wall Spikes

Anti-climb wall spikes are effective and robust security devices that are ideal for protecting walls, security fencing, gates, and flat roofs among other things.

Consisting of a continuous double row of razor-sharp spikes. The outer spikes are barbed and the narrow inner spike has high penetrating power.

Medium sized wall spike Specification

MaterialHot dipped galvanized steel sheet 200g/sq.m
Barb length30mm-100mm
Barb Thickness2.0mm
Antirust MethodHot-dip galvanized or PVC coating
Standard ColorWhite, Black, Blackish green, red, etc
Standard Length1m, 1.25m, 1.5m
Packing     Carton packing 30pcs /carton

5. Packing & Shipping

Fence panel packing: wooden pallet and wooden plate at the top.
Fence post packing: the post is covered with a plastic cap and packed with a plastic bag then in a steel pallet.

6. Feature

  • Versatile, durable and practical
  • Anti-climb and reduce the destroy with the smaller mesh aperture than figure size
  • Thick wire and welded joints make anti-attack using conventional hand tools
  • High strength welded joints at each panel intersection
  • Hot dipped galvanized and polymer powder coating ensure a long service life
  • Panel with V-Beam for extra rigidity
  • Provide strong erosion resistance and anti-ultraviolet
  • Wonderful shape, wild field or vision, easy to instal
  • Protect your valuable stock and key assets
  • Conforms to BS 1722-14

7. 358 Anti Climb Fence Application

  • Electronic alarm and detection systems in prison
  • Petroleum and chemical facilities guarding
  • Industrial and commercial property
  • CCTV camera systems
  • Shipping port
  • Military sites
  • Detention center
  • Psychiatric hospital
  • Power plant
  • Warehouse
  • Laboratory
  • Others: Airport, Sub-station, Bridge, machinery shields, expressway, railway, highway, residential area, garden and farming, etc
