Portable Galvanised Cattle Panels 40 x 80mm 1.8m x 2.1m

Cattle Panels 40 x 80mm 1.8m x 2.1m

1. Portable galvanised cattle panels 40x80mm

40 x 80mm portable galvanised cattle panels 1.8m x 2.1m is popular in livestock farms and yards of Australia and New Zealand. It is called heavy duty cattle panels, cattle fence panel, livestock panel and cattle yard panel, portable cattle panels for sale, which is durable and high quality by galvanised finish to anti-rust and corrosion resistance.
As a professional cattle panels factory, we use standard low carbon steel tube to be cut, 360 degrees fully welding onto the panel, lugs, footplates, and 4 sides welding points for the post cap, then polishing the welding slag on the tube, make the anti-rust painting and paint the silver-zinc, 83 panels with pins tied on the steel pallet packing.

a picture of galvanised cattle round yard in ranch

2. 40 x 80mm Galvanised Cattle Panels Specifications

√  Dimensions : 1800mm (H) x 2100mm (W)
√  6 Oval Rails: 80 x 40mm, 1.6mm wall thick
√  Frame Square Post: 50 x 50mm, 1.6mm wall thick
√  Finish: Galvanised 18-28 Microns
√  Metal Caps: 50 x 50mm
√  Pins: 180 x 60 x 16mm galvanised steel rod
√  Lugs: 2 x U type, and 2 x L type, Galvanised
√  Bottom Feet: 2 pcs (50 x 95 x 3mm) inside towards, Galvanised
√  Standard Packing: 83 pcs on steel pallet with plastic belts
√  Delivery Time: 15 days after deposit
√  Services: 1-year quality guarantee
√  Sample: Free

√  Lightweight Cattle Panel available: 30mm × 60mm
√  Heavier Cattle Panel available: 42mm × 115mm
√  Heavy Duty Cattle Gate available: 2.3m H and 3.0m H
√  Other standard cattle yard panels size: 2.1m, 3m, & 3.6m length

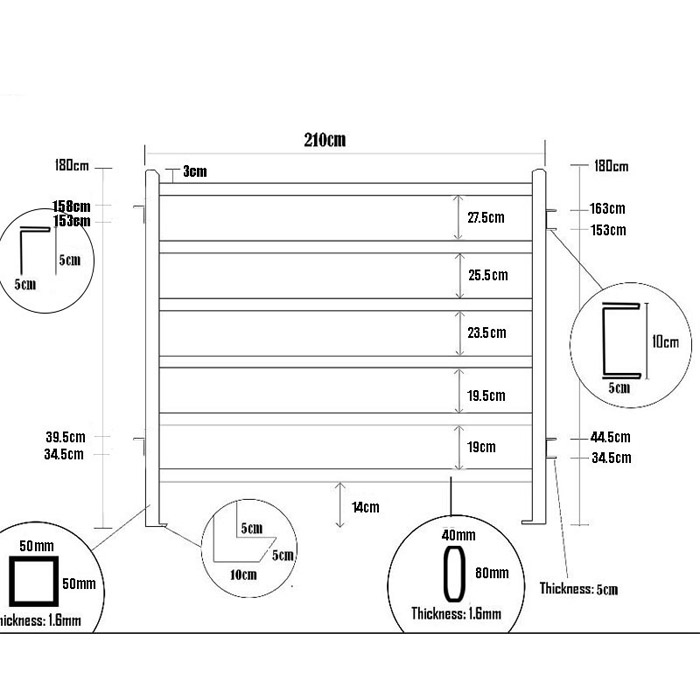

a drawing of cattle panel 1800mm x 2100mm

3. Portable Cattle Panels Features

√  6 bar oval horizontal tube
√  High Visibility
√  Easy and quick install
√  No need to dig a hole when locking panels
√  Metal capped to keep the rain out.
√  Round holes on the footplate for ground fastening
√  Robust interlocking system

√  U and L lugs make fast connect panels
√  No sharp edge for the welding joints to protect the livestock
√  No additional maintenance after installation
√  Welding spots anti-rust finish last longer
√  Keep cattle in a safe place and control easier

√  Competitive cattle panels prices

4. Other Available Cattle Panels For Sale

  1. Panels size: 1800mm height x 2100mm width
    Vertical square rails: 40 x 40mm RHS, 2 bars
    Horizontal oval rails: 60 x 30mm, 6 bars
    1 set includes: 2 rain caps, 2 U lugs, 2 L lugs, 2 pins and 2 foot plates.
  2. Panels size: 1600mm height x 2100mm width
    Vertical square rails: 50 x 50mm RHS, 2 bars
    Horizontal oval rails: 80 x 40mm, 5 bars
  3. Panels size: 1600mm height x 3000mm width
    Vertical square rails: 50 x 50mm RHS, 2 bars
    Horizontal oval rails: 80 x 40mm, 5 bars

5. The number of cattle panels required for a portable yard depends on the size of the yard.

Cattle Fence Panels For 20 Head
1 pcs Cattle Fence Panels: 1.8 x 2.1m, 6 oval rails 80 x 40 x 1.6mm, Galvanised
1 pcs Mangate Panels: 2.1m Length, Galvanised
2 pcs Cattle Fence Gate: 2.1 x 2.2m, Galvanised
1 pcs sliding gate
1 manual vet cattle crush
1 load ramp: 3.0m
All above go with necessary fittings
Weight:
Dimensions: 3.6m long, 2.2m wide & 1.3m high.

Cattle Fence Panels For 30-40 Head
Cattle Fence Panels (10 panels for 35 head, 15 for 40 head) : 1.8 x 2.1m, 6 oval rails 80 x 40 x 1.6mm, Galvanised
1 pcs Mangate Panels: 2.1m Length, Galvanised
Cattle Fence Gate ( 3 pcs for 35 head, 4 for 40 head): 2.1 x 2.2m, Galvanised
1 pcs sliding gate
1 manual vet cattle crush
1 load ramp: 3.0m
1 Race Bow
All above go with necessary fittings
Weight:
Dimensions 3.6m long, 2.2m wide & 1.5m high

Cattle Fence Panels For 50 Head

13 pcs Cattle Fence Panels: 1.8 x 2.1m, 6 oval rails 80 x 40 x 1.6mm, Galvanised
3 pcs Cattle Fence Gate: 2.1 x 2.2m, Galvanised
1 pcs race bows
1 manual vet cattle crush
1 load ramp
All above go with necessary fittings

Cattle Fence Panels For 60-80 Head
28 pcs Cattle Fence Panels: 1.8 x 2.1m, 6 oval cattle rail 80 x 40 x 1.6mm, Galvanised
2 pcs Mangate Panels: 2.1m Length, Galvanised
6 pcs Cattle Fence Gate: 2.1 x 2.2m, Galvanised
1 pcs Double Swing Cattle Gate: 4.0m length, Galvanised
2 pcs race bows
1 pcs sliding gate
1 cattle crush
1 load ramp
All above go with necessary fittings
Weight:
Dimensions 4.4m long, 2.2m wide & 1.8m high

The Design of Portable Cattle Yards

7-Day Fence Fast Delivery

Why can we do 7 days of proofing? Because we have over 10 welding platforms to produce fences every day, and a feet machine that can be stocked together to ship anytime.

And we have over 5 product experts with over 5 years of experience designing, they can be your sturdy backbone.
